Documentation

Displays the documentation dialog box.

Command: tracer > documentation
Button: ()

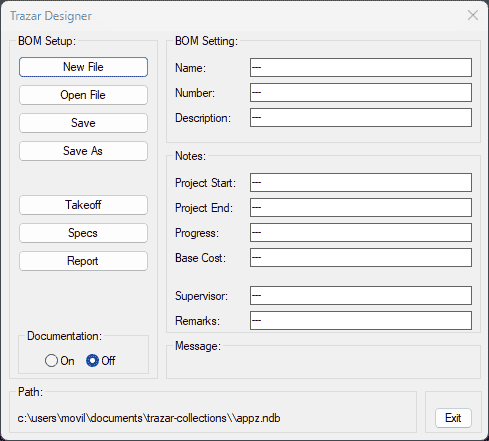

When you select Documentation from the dialog box you can get access building management. Also, you have choice reports and creates an automatic bill of materials of all accessory items used on the drawing by trazar program.

Documentation

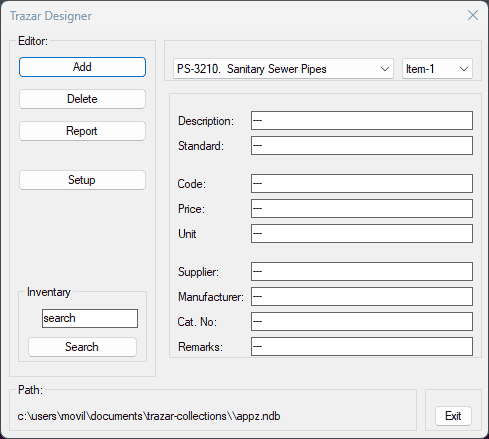

When you select Sheet from the dialog box you can register main items that used frequently.

Search

Using the search engine, you can find text descriptions or material codes contained in the drawing created by trazar program. Additionaly, you can use abbreviations to get the numbers of blocks in the drawing or remove old attributes and replace it with new attributes of the database.

Abbreviations

Datas

Results

Comments

#B

Block Name.

Block

Get the numbers of any block contained in the drawing.

#E

Code Material or Any Description

Attributes.

Remove old attributes and replace it with new attributes.

#L

Code Material

Length

Display the length of the object.

Example:
Search: #L,EL700
Results: 3.5 u founded for "EL700".

Reports

You can select a report output options (xml, csv, rtf).

After specifying you Report Output TRAZAR produces a report based on your selections.

Note: All drawing creates by trazar program that contain accessories must be turned on (documentation module) in order for these to be included in the report.
